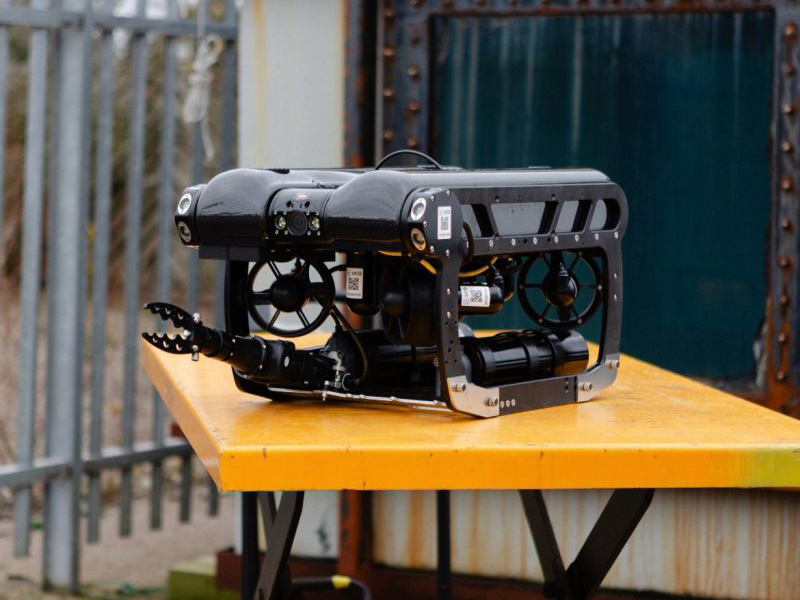

Let’s take a deep dive into some of our rental tech options starting with Deep Trekker Inc.’s #Pivot with Gripstick.
The perfect balance between size and power in a portable package. Offering enhanced stability, greater visibility, speed and control.
High efficiency LED Lighting
Up to 3-hour battery operation
305m depth rating
HD rotating camera head
Passenger/Cargo Air travel friendly
Field swap batteries
Rotating tool platform
Simplified controls
Specifications
Width: 360 mm (14.2″)
Height: 310 mm (12.2″)
Length: 576 mm (22.7″)
Weight (In air): 16.7 kg(36.8 lb)
Body Material: Carbon Fibre, Stainless Steel, Buoyancy Foam Window Material: Sapphire, Acrylic
Depth Rating: 305 m (1000 ft)
Operating Temp: -1o·c to 50’C Cl4’F – 122°Fl
Case: Custom Pelican Air 1650, 1560 Handle and Wheels Drives/Thruster: Magnetically Coupled/Sealed
ROV Electrical System: System Voltage: 19.6 voe
Battery Run Time: Up to 3 Hours (simple battery change) Battery Recharge: 1.5 Hours
Thruster Control:
6x Independent Control Infinitely Variable 100% Reversible
Automatic Depth Holding Vectoring
ROV Lights, Camera
Video: Full HO 1080p – 192Dxl080, 30FPS 0.001Lux, 200′
Total Range of View (Optional 4K)
Lights: High Efficiency LED, Fully Dimmable, 1000 Lumens Tracking with Camera. Optional: 1000-4400 Lumens Add-ons
Picture: JPG 8mp
Controller with BRIDGE Technology Screen: 178 mm (7″) Wide-Angle LCD
Controller: 16:9 Up to 4K Recording, Weatherproof, Connectivity USB, SO, HOMI and Ethernet
ROV Tether
Tether Length: 100m (additional lengths available) Tether Weight: Neutrally Buoyant in Water
Tether Diameter: 4.5 mm (0.18″) – 6.5 mm(0.26″)
Tether Construction: Polyurethane outer jacket with embedded light weight synthetic fibers
Maximum Working Strength: 25 kg (55 lbs) Minimum Breaking Strength: 90 kg (200 lb
